HRQ列管式换热器系列
HRQ Series Pipe Heat Exchanger

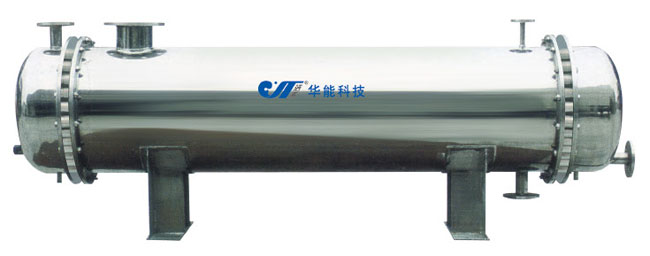

    本产品为列管式换热器，双管板胀接设计，防止换热器泄露对高洁净物料的污染。广泛应用于制药、化工、食品纺织等行业的液体热量交换。依据工艺要求的不同分为：316L、304材质两种，换热器内外均作抛光处理Ra0.45， 内部整体钝化处理，亦可根据工艺要求进行纯蒸汽灭菌。该产品由于密闭性好，适应条件范围广且不易污染。尤其对制药行业的输液、水针、冻干粉针剂和生物制品生产过程中的纯化水、注射用水和药液升、降温的换热使用。也可根据用户工艺要求，在本产品的基础上对材质和特殊要求进行设计。可生产1~200m2规格的换热器

The product is tubular heat exchanger, design of double-tubesheet expanded to prevent pollution of high clean materials by heat exchanger leak, and it is widely used in fluid heat exchange of the drugs-manufacturing,chemistry industry,food,spinning and weaving profession.According to the different procedure,there are two kinds of material:316L and 304. The inside and outside of the heat exchanger is polished Ra0.45 and the whole inside is treated with deactivated processing.It can also be used to kill the bacteria with pure vapor according to the procedure.Due to its good sealing,wide applicable condition and not easy pollution,it is especially suitable for the heat transfer of infusion,the water needle the freezing and drying powder injection in the drugs-manufacturing profession, and the purification water,the injection water in the process of biological preparations,as well as for the rising and decreasing temperature of medicine fluid.
It can also make a special design based on the material and special requirements of this product according to the process requirements that customers propose. And it can manufacture heat exchanger with the size ranging from 1m2 to 200m2.
