反渗透装置
Reverse Osmosis Unit
二级反渗透装置
Secondary
Reverse Osmosis Unit
反渗透是九十年代发展起来的一种膜分离技术，它主要利用半透膜的渗透原理，通过一定和方式给它施加一种压力，反于自然渗透方向的力，使浓溶液中的水向稀溶液中渗透，这种方式称为反渗透。由反渗透元件组成的装置称为反渗透装置。
Reverse osmosis is a kind
of membrane separation techniques which was
developed in 1970s it mainly used the osmosis
principle of the semipermeable membrane, and
brings a kind of pressure to it in a certain
way, opposite to the force in natural osmosis
direction, then the water in the strong solution
osmosizes into thin solution, this is reverse
osmosis. The unit which is made up of reverse
osmosis components is reverse osmosis unit,
二级反渗透装置制备纯化水工艺
Water purification process by secondary reverse
osmosis unit
特点
Features
适用于原水含盐量较低的地区
产水总碳量(有机物)较低
无污染排放
结构较为简单
applied in the areas where the raw water
contains little salt.
total quantity of carbon (organic) is low.
non-contamination emission.
its structure is simple.
主要技术数据表 Primary technical
data sheet
|
项目Item
型号Type |
产水量m3/h
Water output |
最小进水m3/h
Minimum water intake |
脱盐率%
Desalination rate |
工作水温℃
Temperature of the working water |
|
FSJ41X-0.5XB-2 |
0.5 |
2.2 |
98 |
5-35 |
|
FSJ42X-1XB-2 |
1 |
2.8 |
98 |
5-35 |
|
FSJ42R-2XB-2 |
2 |
4.1 |
97 |
5-35 |
|
FSJ43R-3XB-2 |
3 |
6.5 |
97 |
5-35 |
|
FSJ43R-4XB-2 |
4 |
7.8 |
97 |
5-35 |
|
FSJ82R-6XB-2 |
6 |
12.5 |
97 |
5-35 |
|
FSJ82R-8XB-2 |
8 |
15 |
97 |
5-35 |
|
FSJ83R-10XB-2 |
10 |
15 |
97 |
5-35 |
|
FSJ83R-15GB-2 |
15 |
31 |
97 |
5-35 |
|
FSJ84R-20GB-2 |
20 |
38 |
97 |
5-35 |
|
FSJ85R-25GB-2 |
25 |
41.25 |
97 |
5-35 |
|
FSJ86R-30G-2 |
30 |
47.5 |
97 |
5-35 |
|
FSJ86R-50G-2 |
50 |
79.5 |
97 |
5-35 |
一级反渗透装置

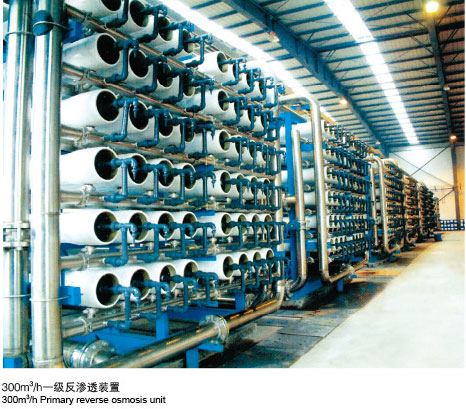

Primary Reverse Osmosis Unit

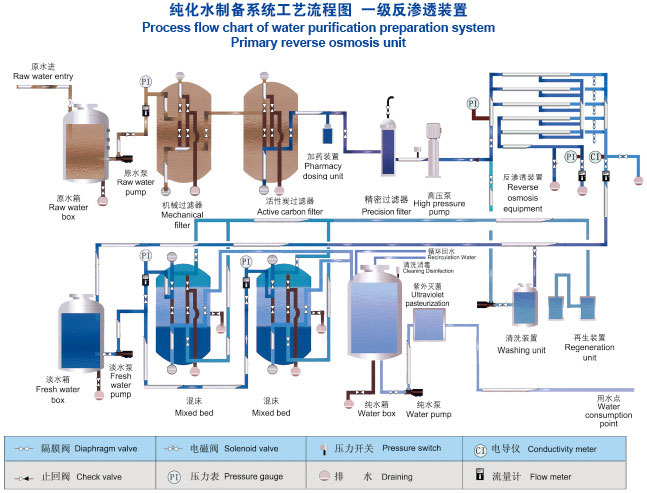

一级反渗透装置+混床制备 纯化水工艺特点

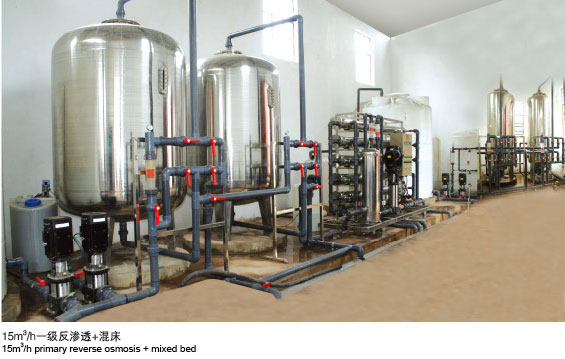

First-grade reverse osmosis devices+mixed bed
equipments
适用于原水含盐量较高的地区
产水电导率较好
一次性投资较低
运行成本较低
稳定性较好
Process features of purified water:
applied in the area where the salinity of the
raw water is high.
the electric conductivity of the water output is
good
Low expendable investment
Low operating cost
Good stability
主要技术数据表 Primary technical
data sheet
|
项目Item
型号Type |
产水量m3/h
Water output |
最小进水m3/h
Minimum water intake |
脱盐率%
Desalination rate |
工作水温℃
Temperature of the working water |
|
FSJ41X-0.5XB |
0.5 |
2.0 |
98 |
5-35 |
|
FSJ42X-1XB |
1 |
2.5 |
9 |
5-35 |
|
FSJ42R-2XB |
2 |
3.6 |
97 |
5-35 |
|
FSJ42R-3XB |
3 |
5.0 |
97 |
5-35 |
|
FSJ42R-4XB |
4 |
5.3 |
97 |
5-35 |
|
FSJ82R-6XB |
6 |
11 |
97 |
5-35 |
|
FSJ82R-8 |
8 |
13 |
97 |
5-35 |
|
FSJ83R-10XB |
10 |
15 |
97 |
5-35 |
|
FSJ83R-15GB |
15 |
20 |
97 |
5-35 |
|
FSJ84R-20G |
20 |
26 |
97 |
5-35 |
|
FSJ85R-25GB |
25 |
35 |
97 |
5-35 |
|
FSJ86R-30G |
30 |
40 |
97 |
5-35 |
|
FSJ86R-50G |
50 |
67 |
97 |
5-35 |
|
