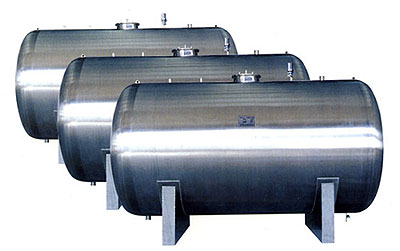

Distilled water tanks are
manufactured by our company completely
according to the GMP criteria. the
auto-controlling insures the technique
requirements of 80℃ memory and 65℃ small and
large circulation. there are two kinds of
tank body, vertical and horizontal, and both
are double-layer structures. The polishing
precision of inside wall is Ra0.45. The
inside of pipe are heated, winding the
spiring tape and are filled with the
Assemble, Ammonia fat to keep warm. The
outside are kept warm with mirror plate and
polishing plate. The parts that touch the
medical liquid adopt the 316L material, the
other parts 304 material. There are water
entrance, circumfluence entrance, sanitizing
entrance, cleaning entrance, manhole with
are breather, 0.22um, on the top, and on the
bottom there are entrance for condensed
water, entrance for distilled water,
entrance for dirty water, entrance for
measuring the liquid level, and the meter
showing the temperature of distilled water
and liquid level realize the
auto-controlling of constant temperature and
alarming when above the upper limit and
below the lower limit. |
