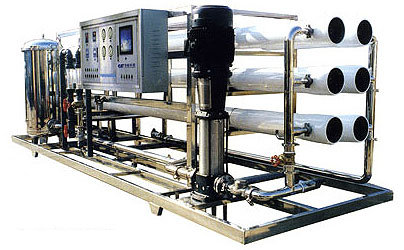

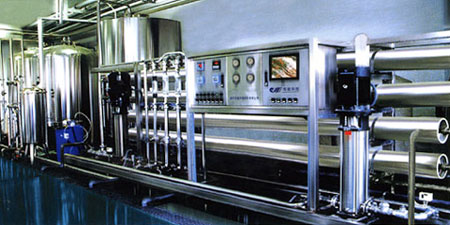

二级反渗透装置
Secondary Reverse Osmosis Unit
反渗透是七十年代发展起来的一种膜分离技术，它主要利用半透膜的渗透原理，通过一定和方式给它施加一种压力，反于自然渗透方向的力，使浓溶液中的水向稀溶液中渗透，这种方式称为反渗透。由反渗透元件组成的装置称为反渗透装置。
Reverse osmosis is a kind of membrane
separation techniques which was developed in
1970s it mainly used the osmosis principle
of the semipermeable membrane, and brings a
kind of pressure to it in a certain way,
opposite to the force in natural osmosis
direction, then the water in the strong
solution osmosizes into thin solution, this
is reverse osmosis. The unit which is made
up of reverse osmosis components is reverse
osmosis unit,

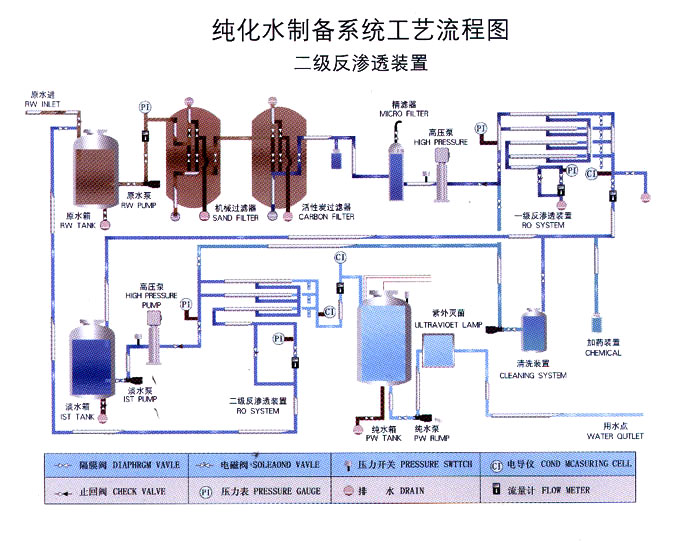

纯化水制备系统工艺流程图二级反渗透装置
Process flow chart of water purification
preparation system
Secondary reverse osmosis unit
二级反渗透装置制备纯化水工艺
特点
1、适用于原水含盐量较低的地区
2、产水总碳量(有机物)较低
3、无污染排放
4、结构较为简单
Water
purification process by secondary reverse
osmosis unit
Features
1、applied in the areas where the raw water
contains little salt
2、total quantity of carbon ( organic ) is
low
3、non-contamination emission
4、its structure is simple
主要技术数据表 Primary
technical data sheet
型号 项目
Type Item |
产水量m3/h
Water output |
最小进水m3/h
Minimum
water intake |
脱盐率%
Desalination
ate |
工作水温℃
Temperature
of the
working water |
|
FSJ41X-0.5XB-2 |
0.5 |
2.2 |
98 |
5-35 |
|
FSJ42X-1XB-2 |
1.0 |
2.8 |
98 |
5-35 |
|
FSJ42R-2XB-2 |
2.0 |
4.1 |
97 |
5-35 |
|
FSJ43R-3XB-2 |
3.0 |
6.5 |
97 |
5-35 |
|
FSJ43R-4XB-2 |
4 |
7.8 |
97 |
5-35 |
|
FSJ82R-6XB-2 |
6 |
12.5 |
97 |
5-35 |
|
FSJ82R-8XB-2 |
8 |
15 |
97 |
5-35 |
|
FSJ83R-10XB-2 |
10 |
15 |
97 |
5-35 |
|
FSJ83R-15GB-2 |
15 |
31 |
97 |
5-35 |
|
FSJ84R-20GB-2 |
20 |
38 |
97 |
5-35 |
|
FSJ85R-25GB-2 |
25 |
41.25 |
97 |
5-35 |
|
FSJ86R-30G-2 |
30 |
47.5 |
97 |
5-35 |
|
FSJ86R-50G-2 |
50 |
79.5 |
97 |
5-35 |

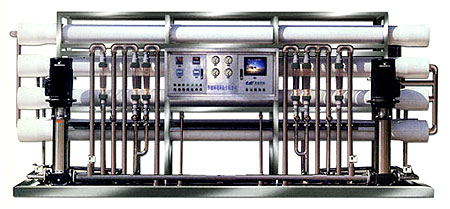

一级反渗透装置
Primary Reverse Osmosis Unit
一级反渗透装置+混床制备
纯化水工艺特点
1、适用于原水含盐量较高的地区
2、产水电导率较好
3、一次性投资较低
4、运行成本较低
5、稳定性较好
First-grade reverse osmosis devices + mixed
bed equipments
Process features of purified water：
1、applied in the area where the salinity of
the raw water is high
2、the electric conductivity of the water
output is good
3、Low expendable investment
4、Low operating cost
5、Good stability
▲

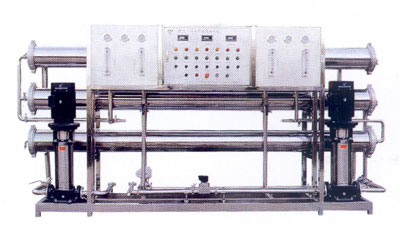

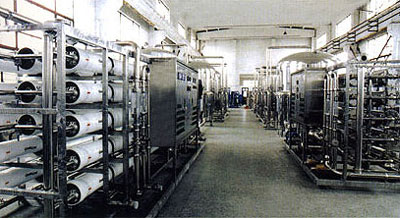

30m3/h 一级反渗透装置
30m3/h Primary reverse osmosis
unit

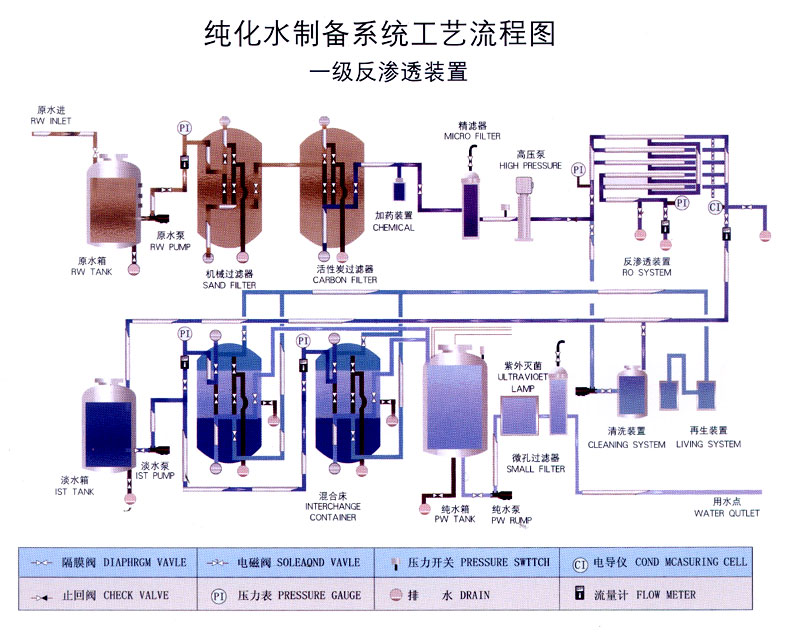

纯化水制备系统工艺流程图一级反渗透装置
Process flow chart of water purification
preparation system
Primary reverse osmosis unit
▲

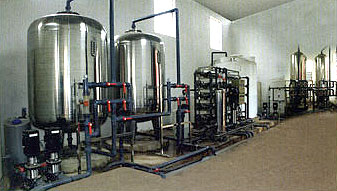

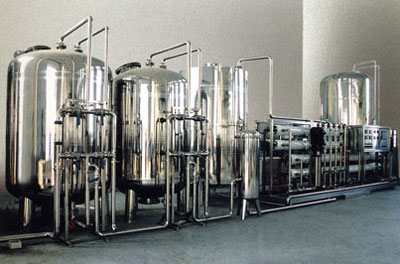

15m3/h 一级反渗透+混床
15m3/h Primary reverse osmosis +
mixed bed
▲

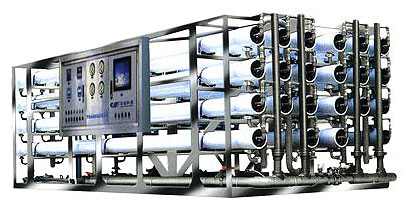

110m3/h 一级反渗透装置
110m3/h Primary reverse osmosis
unit
主要技术数据表 Primary
technical data sheet
型号 项目
Type Item |
产水量m3/h
Water output |
最小进水m3/h
Minimum
water intake |
脱盐率%
Desalination
ate |
工作水温℃
Temperature
of the
working water |
|
FSJ41X-0.5XB |
0.5 |
2.0 |
98 |
5-35 |
|
FSJ42X-1XB |
1 |
2.5 |
98 |
5-35 |
|
FSJ42R-2XB |
2 |
3.6 |
97 |
5-35 |
|
FSJ42R-3XB |
3 |
5.0 |
97 |
5-35 |
|
FSJ42R-4XB |
4 |
5.3 |
97 |
5-35 |
|
FSJ82R-6XB |
6 |
11 |
97 |
5-35 |
|
FSJ82R-8XB |
8 |
13 |
97 |
5-35 |
|
FSJ83R-10XB |
10 |
15 |
97 |
5-35 |
|
FSJ83R-15GB |
15 |
20 |
97 |
5-35 |
|
FSJ84R-20GB |
20 |
26 |
97 |
5-35 |
|
FSJ85R-25GB |
25 |
35 |
97 |
5-35 |
|
FSJ86R-30G |
30 |
40 |
97 |
5-35 |
|
FSJ86R-50G |
50 |
67 |
97 |
5-35 |
|
